Python code for Boise de Vaux

Postby Godot » Thu May 13, 2010 6:20 am

Shorah all

I have developed a python script that I use to automagically generate the forest for my age of Vaux. I thought that it might be useful to the community as inspiration and as a learning tool for new python coders. I have stripped out some of the details to make it easier to understand but it is still useful as a demo. Just copy the script to a text window in Blender and run it on a default project. It will draw the tree trunks on the fly and distribute them in a Fibonacci distribution. The distribution is spread out (forest size) so you will need to scroll out to a larger scale to see the result. This code can also be used to create realistic flowers. I hope you can have fun with it.
See the code below. Thank you tachzusamm.
Last edited by Godot on Sat May 15, 2010 7:44 am, edited 4 times in total.
Godot

Posts: 50
Joined: Sun Jan 06, 2008 10:15 am
Location: North East

Re: Python code for Boise de Vaux

Postby diafero » Thu May 13, 2010 7:41 am

Thanks a lot for sharing :)

The indention got completely lost, could you perhaps upload it as attachment? Oh, and I'd be interested in some screenshots :)
I prefer e-mails to "diafero arcor de" (after adding the at and the dot) over PMs.

"Many people's horizon is a circle with a radius of zero. They call it their point of view."

Deep Island Shard | Offline KI
diafero
Deep Island Admin

Posts: 2803
Joined: Mon May 05, 2008 5:50 am
Location: Germany

Re: Python code for Boise de Vaux

Postby Godot » Thu May 13, 2010 9:18 am

I was unable to upload the file as a .txt so I changed it to .rtf
Copy the text into the Blender text window.
flower.rtf
you can change the extension to .txt
(3.23 KiB) Downloaded 146 times
Last edited by Godot on Thu May 13, 2010 7:21 pm, edited 1 time in total.
Godot

Posts: 50
Joined: Sun Jan 06, 2008 10:15 am
Location: North East

Re: Python code for Boise de Vaux

Postby Godot » Thu May 13, 2010 9:41 am

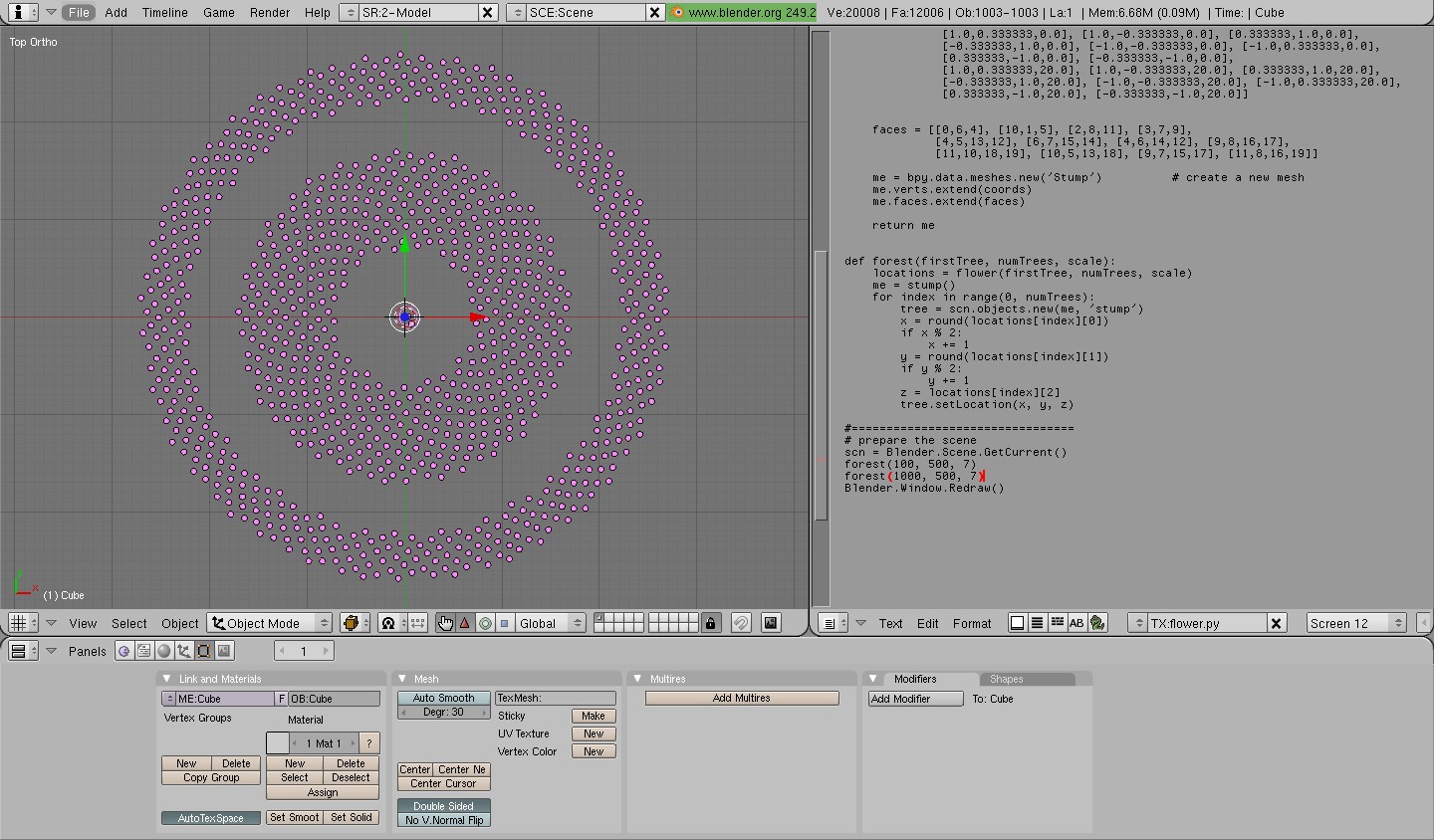

This is a simple version of what Boise de Vaux looks like from the top view except that Vaux has the treetop foliage. The central opening contains the lumber mill and paper mill. The gap between the woods contains the cottage and gardens along with a maze so that the player can explore and discover elements of the story. The edge of the age is blocked by a hedge along the inside of the outer forest. The background is beyond the outer edge of the outer forest. The forest of Vaux has 5000 trees in the center and 1000 in the outer forests. This takes quit a long time to render with my current computer with all of the textures and branches etc. The top level code to generate this scene;

scn = Blender.Scene.GetCurrent()
forest(100, 500, 7) # inner woods
forest(1000, 500, 7) # outer woods
Blender.Window.Redraw()
Attachments
test run
Godot

Posts: 50
Joined: Sun Jan 06, 2008 10:15 am
Location: North East

Re: Python code for Boise de Vaux

Postby diafero » Thu May 13, 2010 11:41 am

You might also try to zip the text file, that should be accepted as attachment.

Wow, indeed this looks naturally distributed. However I fear Uru will not be able to render such huge amounts of trees, or flowers, or whatever...
I prefer e-mails to "diafero arcor de" (after adding the at and the dot) over PMs.

"Many people's horizon is a circle with a radius of zero. They call it their point of view."

Deep Island Shard | Offline KI
diafero
Deep Island Admin

Posts: 2803
Joined: Mon May 05, 2008 5:50 am
Location: Germany

Re: Python code for Boise de Vaux

Postby Godot » Thu May 13, 2010 12:04 pm

The game engine only renders objects that are within the view of the player. I also use mist to limit the field of view.
The idea is that the forest needs to be large enough that the player can feel lost and isolated.

I use a modified version of this code to generate flowers then create a texture from the render.
The texture is then added to a simple geometry for the game.

I have been able to download the code file by clicking on the link.
Godot

Posts: 50
Joined: Sun Jan 06, 2008 10:15 am
Location: North East

Re: Python code for Boise de Vaux

Postby Tsar Hoikas » Thu May 13, 2010 3:22 pm

Please embed code inside a [code] bbcode. Thanks.
User avatar
Tsar Hoikas
Councilor of Technical Direction

Posts: 1852
Joined: Fri Nov 16, 2007 9:45 pm
Location: South Georgia

Re: Python code for Boise de Vaux

Postby Nadnerb » Thu May 13, 2010 4:28 pm

Godot wrote:The game engine only renders objects that are within the view of the player.


In the case of Plasma, this is not entirely true. It does do frustrum culling, such that only objects that you're facing are rendered, but it doesn't do any kind of occlusion culling, (ie, not rendering objects hidden by other objects) and I'm not entirely clear on what it does about objects that are beyond the max z depth. ("beyond the mist") Generally visibility concerns in large ages are handled in plasma by the use of manually placed regions that control whether an object is drawn or not.
Live KI: 34914 MOULa KI: 23247 Gehn KI: 11588 Available Ages: TunnelDemo3, BoxAge, Odema
Nadnerb

Posts: 1057
Joined: Fri Sep 28, 2007 8:01 pm
Location: US (Eastern Time)

Re: Python code for Boise de Vaux

Postby Paradox » Thu May 13, 2010 8:21 pm

It shouldn't render objects that are beyond the Yon value set in the .fni file.
"And one day I woke to find the future held no place for me. I was unwanted in a world, that with my hands I'd helped to build. Where once was honesty and pride, I now stand broken and alone."
User avatar
Paradox

Posts: 1259
Joined: Fri Sep 28, 2007 6:48 pm
Location: Canada

Re: Python code for Boise de Vaux

Postby tachzusamm » Sat May 15, 2010 3:46 am

(same as in top post / attached .rtf file, just the formatted code, for easier reading here)
Code: Select all
""" flower of Fibonacci
    uses the golden mean, phi, to generate coordinates for
    objects to be arranged in a natural order.
    A two dimensional graph of the data will resemble a sunflower.
    The angular displacement between buds is (phi * 360) or
    222.5 degrees (137.5)

PARAMETERS:
    firstBud -- relative location of the start of the distribution
      Default = 1 is the center of the scene
    numBuds -- the number of coordinates to be generated.
               The z dimension is set to 0.0 to allow the
               user of the data to set the elevation.
    scale -- set the average distance between buds.
        default value = 1 Blender unit.

"""
#================================
import math

def flower(firstBud = 1, numBuds = 1, scale = 1):
    locations = []
    phi = (math.sqrt(5) - 1) / 2
    radians = 2 * math.pi * phi

    for index in range(firstBud, firstBud + numBuds + 1):
        distance = math.sqrt(index) * scale
        angle = index * radians
        coord = []
        coord.append(distance * math.cos(angle))
        coord.append(distance * math.sin(angle))
        coord.append(0.0)
        locations.append(coord)
    return locations

#================================
import Blender
from Blender import *
import bpy

def stump():

    coords = [[1.0,1.0,0.0], [1.0,-1.0,0.0], [-1.0,-1.0,0.0], [-1.0,1.0,0.0],
              [1.0,0.333333,0.0], [1.0,-0.333333,0.0], [0.333333,1.0,0.0],
              [-0.333333,1.0,0.0], [-1.0,-0.333333,0.0], [-1.0,0.333333,0.0],
              [0.333333,-1.0,0.0], [-0.333333,-1.0,0.0],
              [1.0,0.333333,20.0], [1.0,-0.333333,20.0], [0.333333,1.0,20.0],
              [-0.333333,1.0,20.0], [-1.0,-0.333333,20.0], [-1.0,0.333333,20.0],
              [0.333333,-1.0,20.0], [-0.333333,-1.0,20.0]]


    faces = [[0,6,4], [10,1,5], [2,8,11], [3,7,9],
             [4,5,13,12], [6,7,15,14], [4,6,14,12], [9,8,16,17],
             [11,10,18,19], [10,5,13,18], [9,7,15,17], [11,8,16,19]]

    me = bpy.data.meshes.new('Stump')          # create a new mesh
    me.verts.extend(coords)
    me.faces.extend(faces)

    return me


#================================
def forest(firstTree, numTrees, scale):
    locations = flower(firstTree, numTrees, scale)
    me = stump()
    for index in range(0, numTrees):
        tree = scn.objects.new(me, 'stump')
        x = round(locations[index][0])
        if x % 2:
            x += 1
        y = round(locations[index][1])
        if y % 2:
            y += 1
        z = locations[index][2]
        tree.setLocation(x, y, z)

#================================
# prepare the scene
scn = Blender.Scene.GetCurrent()
forest(100, 100, 7)
Blender.Window.Redraw()



Oh, by the way:
Nature by Numbers

:)
User avatar
tachzusamm

Posts: 575
Joined: Thu May 29, 2008 2:03 am
Location: Germany
